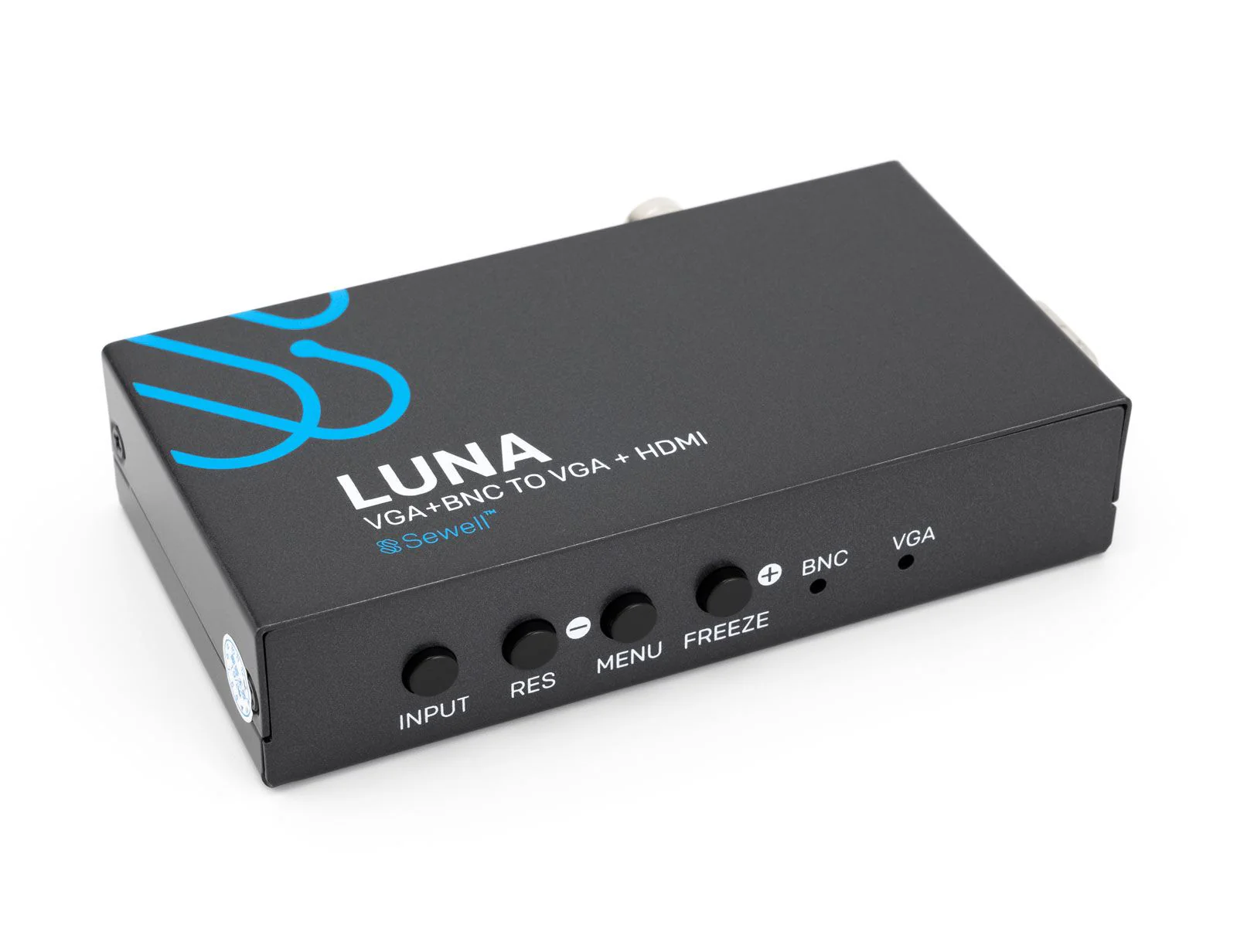

The Luna outputs to either VGA or HDMI. It allows users to convert a BNC video signal into a VGA, DVI, or HDMI. This makes it possible to use a standard VGA/SVGA computer monitor or an HDMI/DVI ready computer monitor to view a BNC video signal.

Luna Diagram

The Luna is the only BNC converter that will work with VGA, DVI, and HDMI allowing it to be used with virtually any computer monitor. This is the ideal solution for devices outputting BNC video signals such as security cameras, surveillance DVRs, multiplexers, and quad video processors.

The Luna also features a "VGA pass-through" which makes it easy to switch between BNC and VGA sources without having to swap cables.(note: the VGA pass-through does NOT convert a VGA signal to HDMI, it is only "VGA to VGA pass-through").

The Luna can also resize the BNC signal to 1920x1080 so you can view your security footage on an HD display.

Specifications

Mfg. Part Number

SW-29297-PRO

Brand

Sewell

Features

Please Note: The Luna converts a BNC signal to VGA or HDMI, though it does not convert a VGA signal to HDMI
No drivers required, Plug and Play
Provides advanced signal processing with great precision, colors, resolutions
Supports PAL, NTSC3.58, NTSC4.43, SECAM and standard TV format inputs
Supports 480i and 570i input resolution
HD Cameras are not supported
Picture freeze function
VGA/HDMI output resolution from 800X600 to 1920X1080
Adjustable brightness, contrast, sharpness, and saturation
Wide range power supply:5V—12V DC adapter
VGA in to VGA output bypass

Technical Specifications

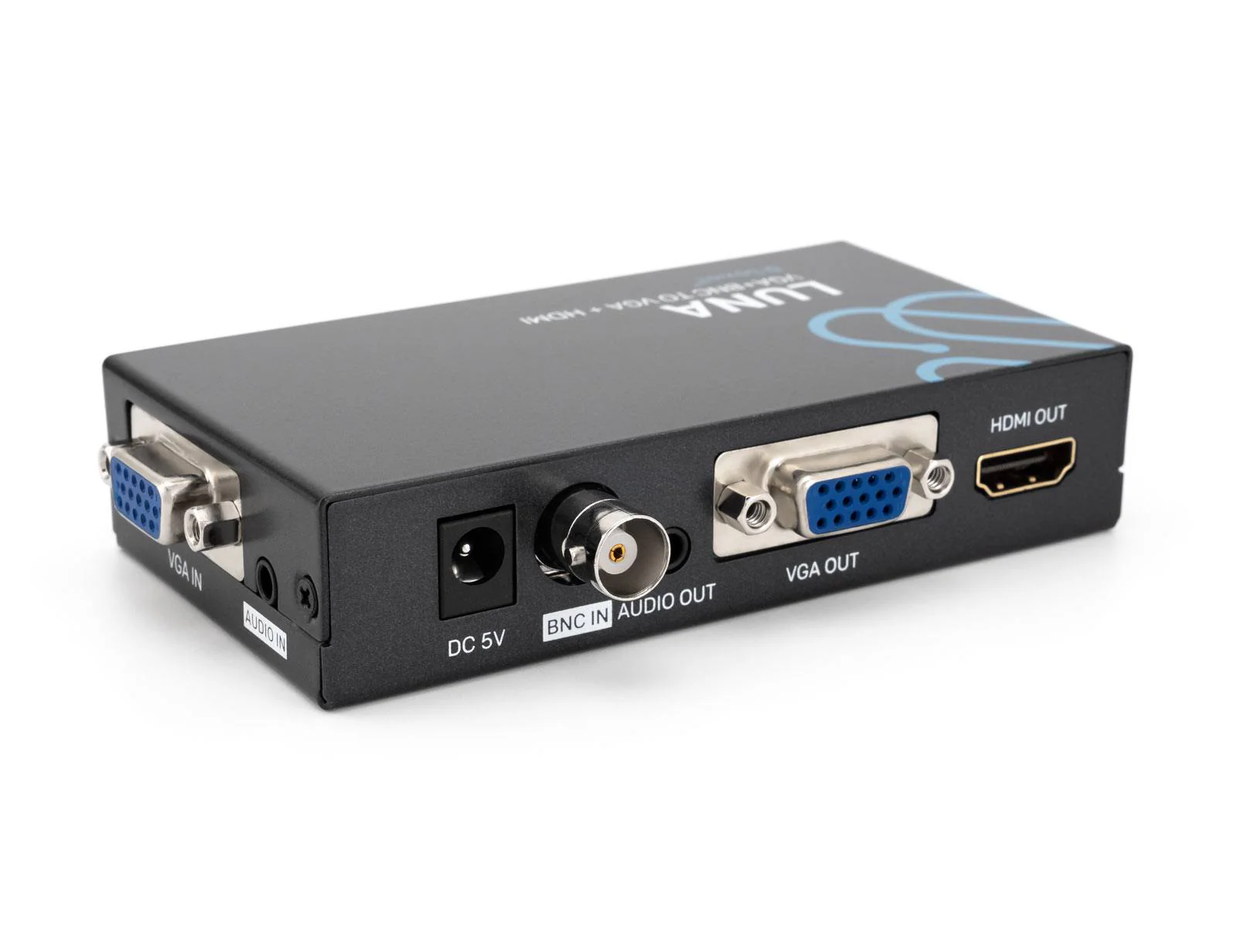

Input ports: x1 BNC, x1 VGA x1 3.5mm
Output ports: x1 VGA, x1 HDMI x1 3.5mm
Power Supply: 5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions(cm): 5.4(D)x 10.7(W) x 3.4(H)
Weight: 0.61 lb.
Output resolutions:

800X600@60Hz
800X600 @ 75Hz
1024X768 @ 60Hz
720p/60(1280X720 @ 60Hz)
1280X1024 @ 60Hz
1360x768 @ 60Hz
1440X900 @ 60Hz
1680X1050 @ 60Hz
1080p/60(1920X1080 @ 60Hz)

CVBS input format: PAL, NTSC3.58, NTSC4.43, SECAM

Package Contents

Power Supply: 5V/1A DC (US/EU standards, CE/FCC/UL certified)
BNC to VGA/HDMI Convert Box.
5V DC Power Supply Adaptor.
Quick reference guide

Adapters and Converters

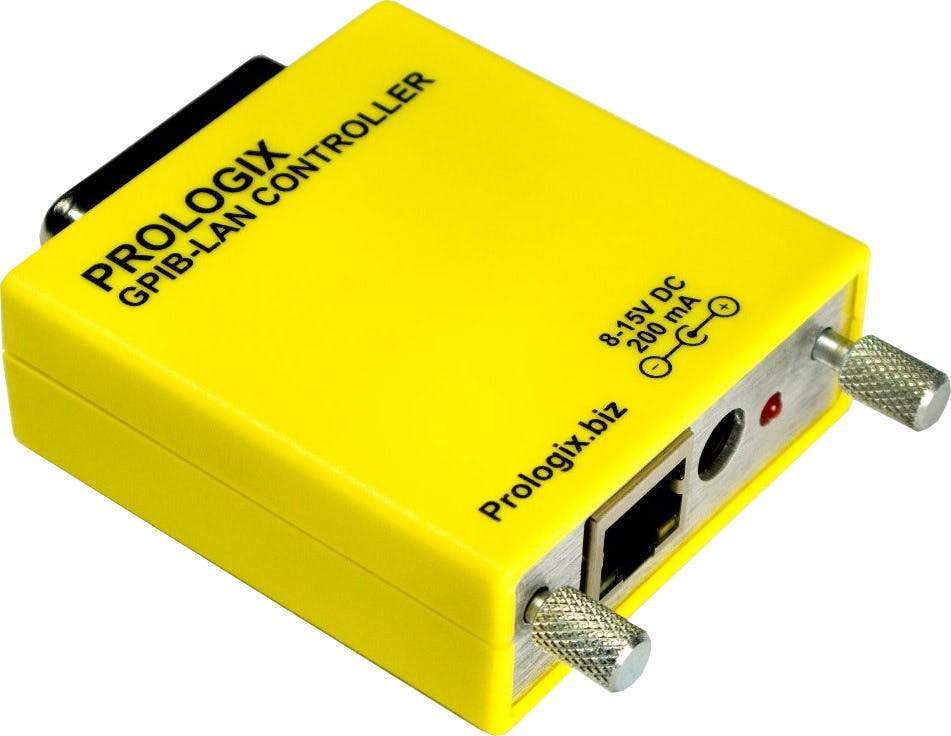

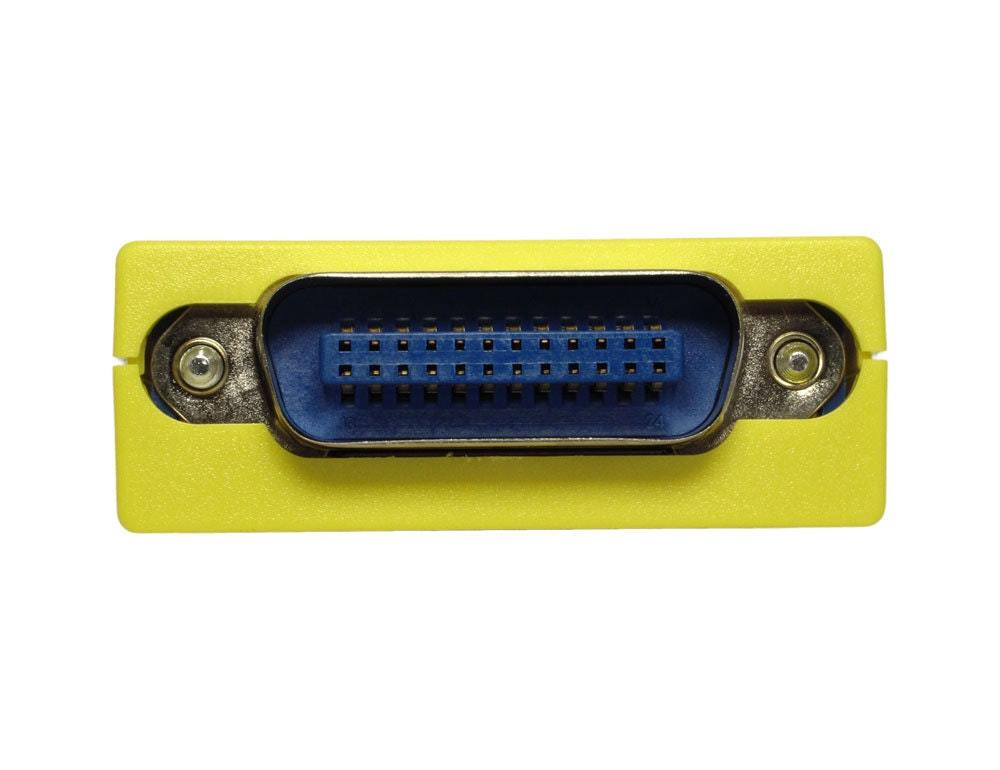

Prologix GPIB to Ethernet (LAN) Controller

Sewell Luna BNC to HDMI & VGA Scaler Converter | Security/CCTV Adapter

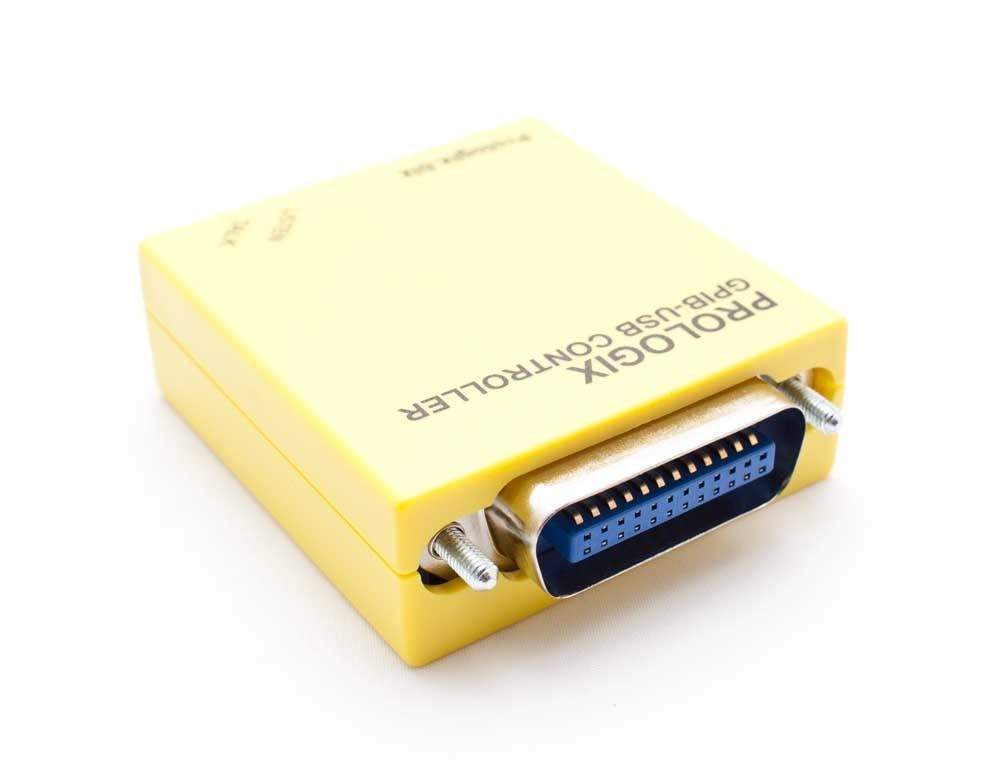

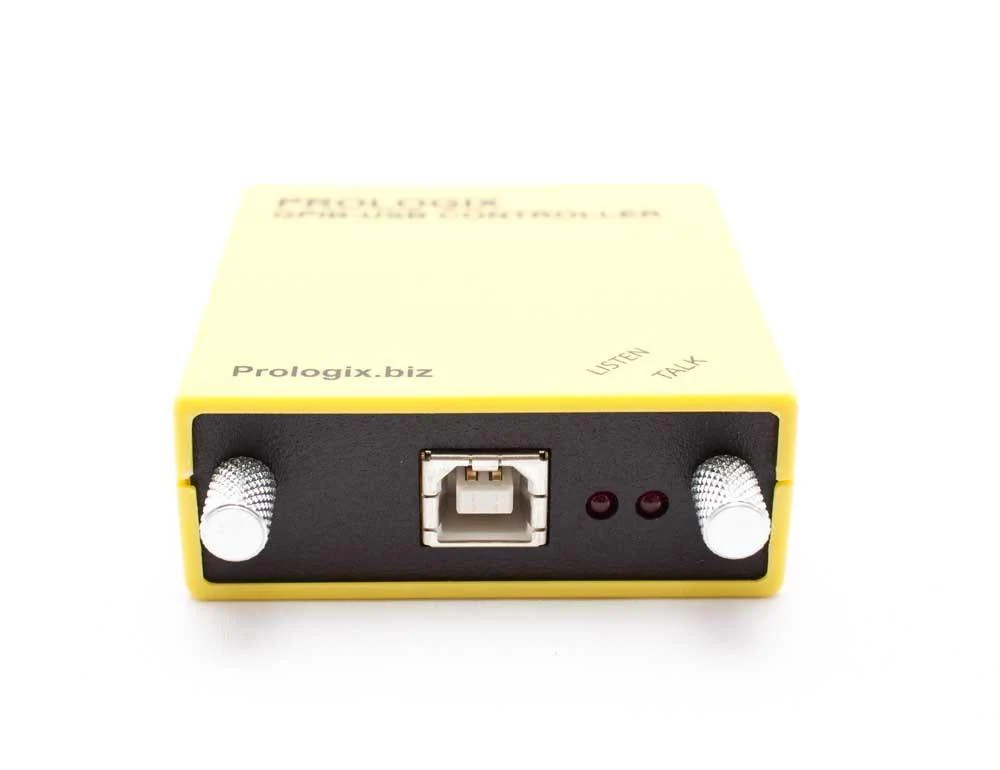

Prologix USB to GPIB Controller | Add IEEE-488 Support to PC or Mac
