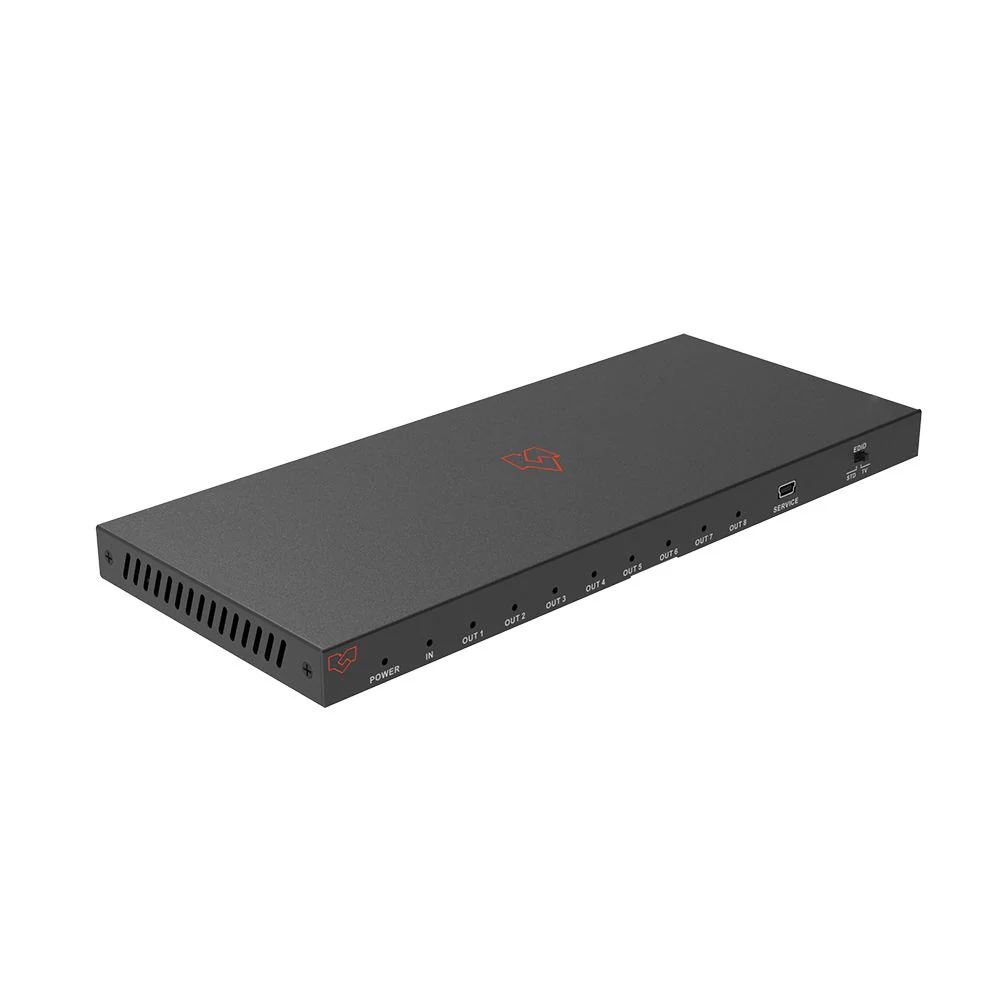

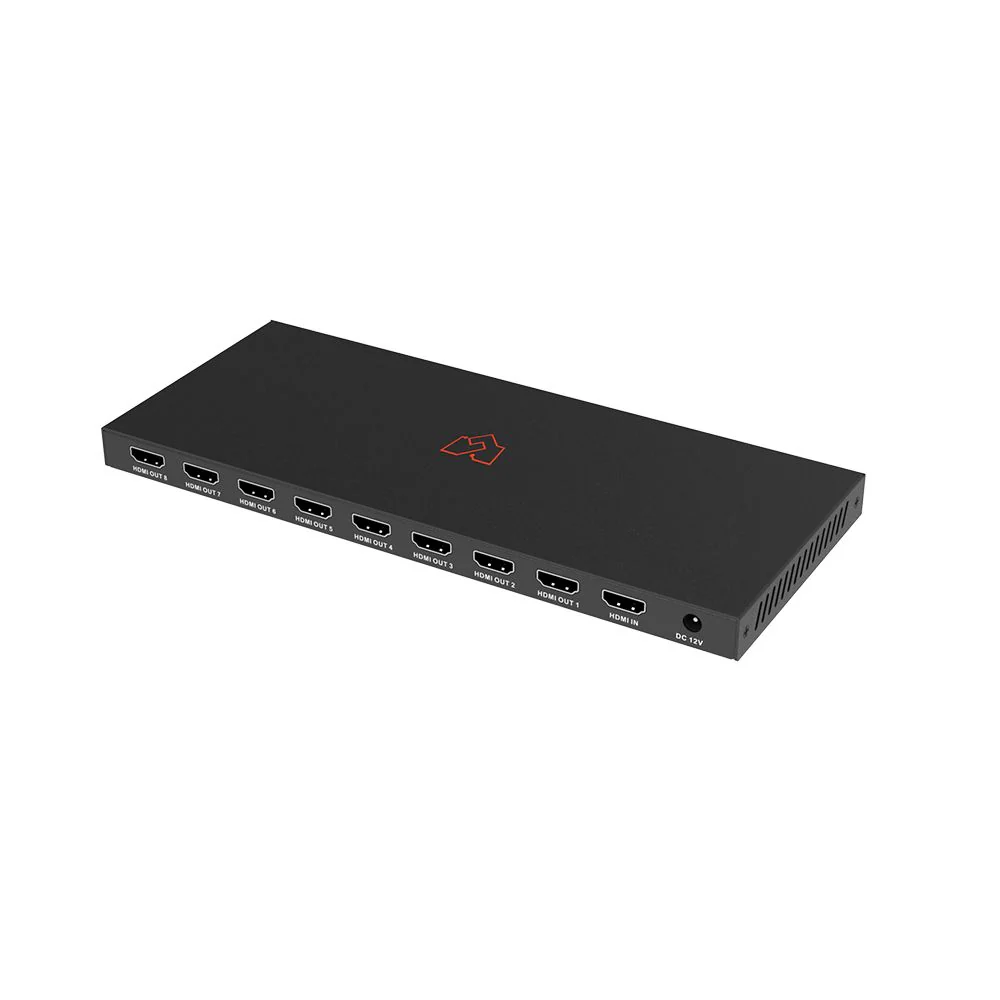

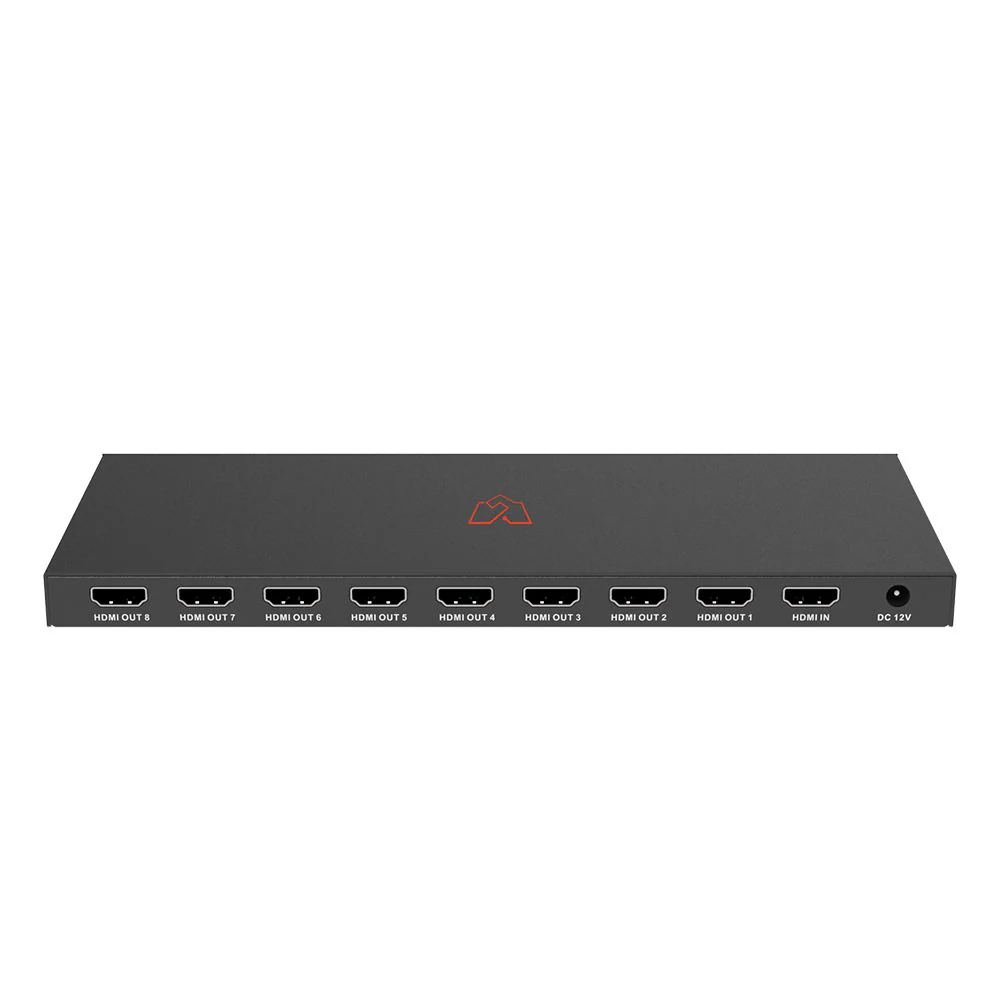

VigilLink 1x8 HDMI 2.0 Splitter Distribution Amplifier 18Gbps / VLSP-18H20

18Gbps 1x8 HDMI Splitter is an advanced solution for splitting a single HDMI signal to 8 HDMI outputs synchronously. It supports up to 18Gbps bandwidth, HDMI 2.0b/HDCP 2.2 content up to 4K@60Hz 4:4:4. It can be set as the COPY/AUTO EDID configuration. Supporting the latest features, you can be assured of reliable and high-quality HDMI distribution.

Featured Highlights

• HDMI 2.0b, HDCP 2.2 compliant

• Supports 18Gbps bandwidth

• Supports resolution up to 4K@60Hz 4:4:4

• Supports HDR function

• Supports COPY/AUTO EDID control via dialing the dip switch

• Compact design for easy and flexible installation

Specifications

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	594MHz / 18Gbps
Video Resolution	480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
HDMI Audio Formats	PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X
ESD Protection	Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Input Ports	1×HDMI Type A (19-pin female) ) 1×SERVICE (Micro USB, Update port
Output Ports	8×HDMI Type A (19-pin female）
Mechanical
Housing	Metal Enclosure
Silkscreen Color	Black
Dimensions	243mm (W) × 102mm (D) × 16mm (H)
Weight	572g
Power Supply	Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption	6.15W
Operating Temperature	-10°C ~ 50°C / 14°F ~ 122°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20 - 90% RH (No condensation)
