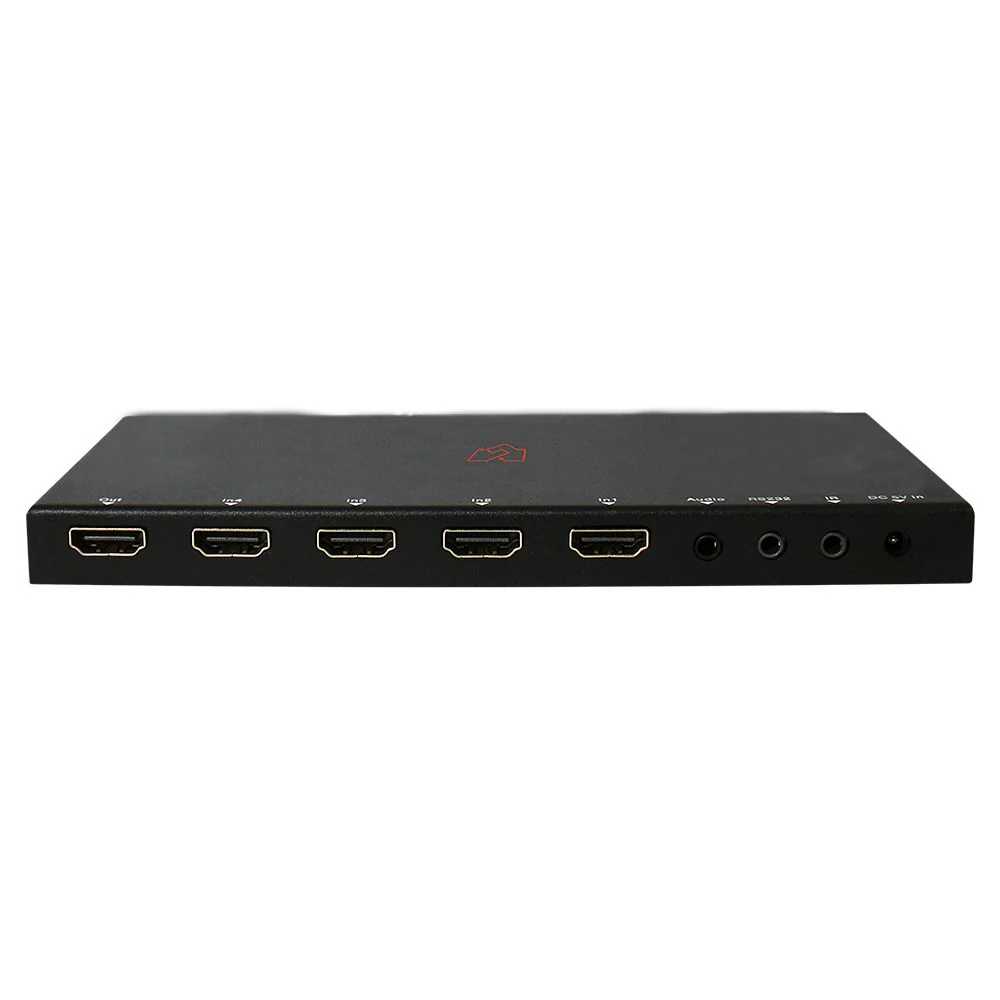

VigilLink 4x1 HDMI 2.0 Switch with Audio ARC 18Gbps / VLSW-41H20R

This is a high-performance HDMI 4x1 switcher that supports HDTV formats up to 4Kx2K@60Hz and all HDMI 3D TV formats. It can extract HDMI stream audio to separate digital and analog audio output. This product supports HDCP repeater/CEC/ARC functions. Select any of the inputs by the front panel button or IR Remote, the corresponding indicator LED on the front panel will be illuminated.

Featured Highlights

• Compliant with HDMI 2.0a, DVI 1.0 standards

• HDCP 2.2 and HDCP 1.4 compliant

• Video formats up to 4Kx2K@60 and all HDMI 3D video formats

• Supports PCM, Dolby TrueHD, DTS-HD Master Audio up to 7.1CH

• Digital and analog audio output

• Supports smart EDID management (Auto/2CH/5.1CH/7.1CH selectable)

• Supports input port auto-switching or manual switching mode

• Audio Return Channel (ARC) support

Specifications

Technical
HDCP Compliance	HDCP 1.4, 2.2
Video Bandwidth	18Gbps
HDMI Audio Output	PCM2.1/5.1/7.1CH,Dolby5.1, DTS5.1, Dolby-TrueHD, DTS-HD
ESD Protection	Human-body Model： ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connection
Input Ports	4× HDMI (Female ports) 1× IR [Receive port] 1× RS 232 port
Output Ports	1× HDMI (Female port) and 1× L/R & Optical port
Mechanical
Dimensions	180 (D) x85 (W) x 11.6 (H)
Weight	300g
Power Consumption	2.5W (Max)
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
