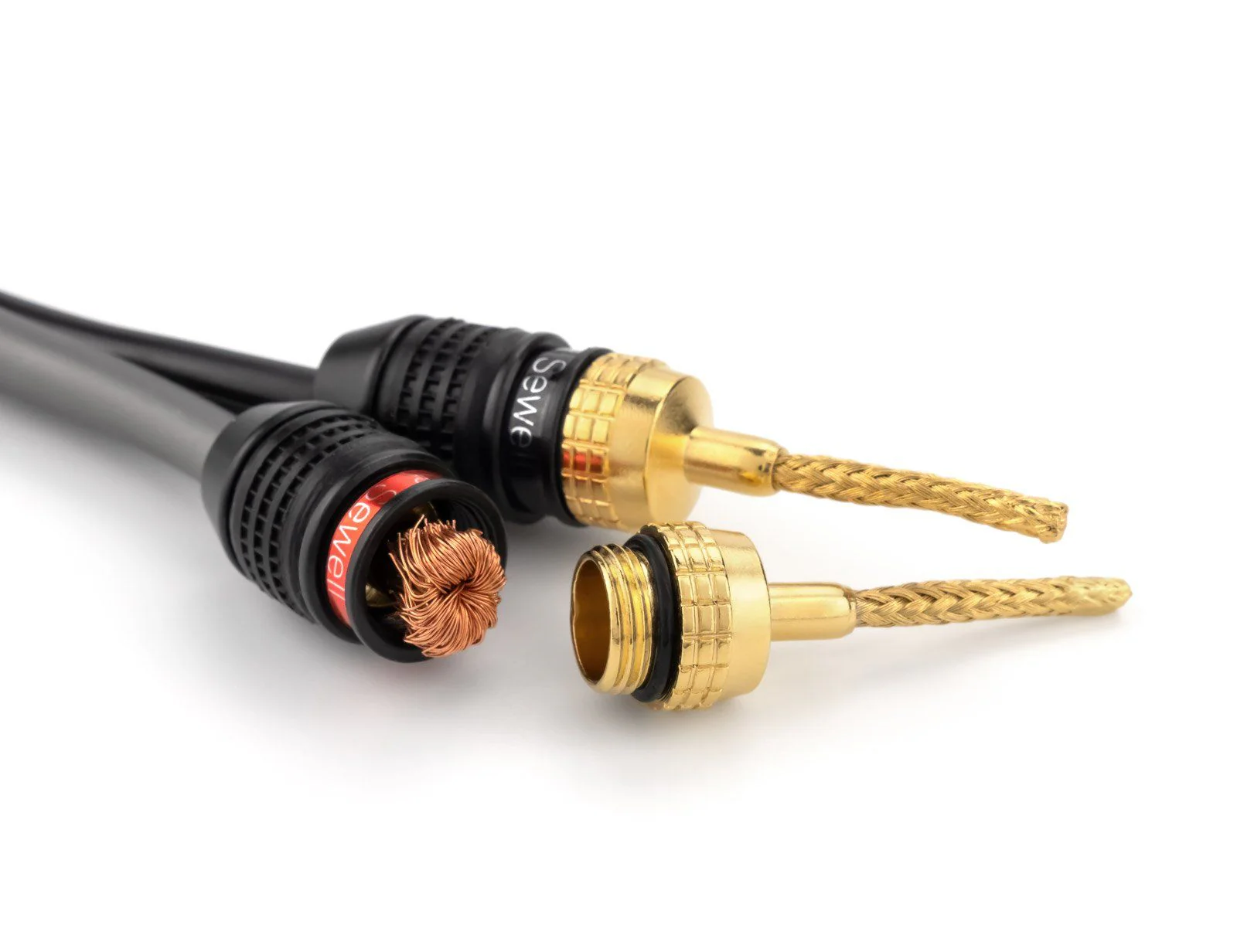

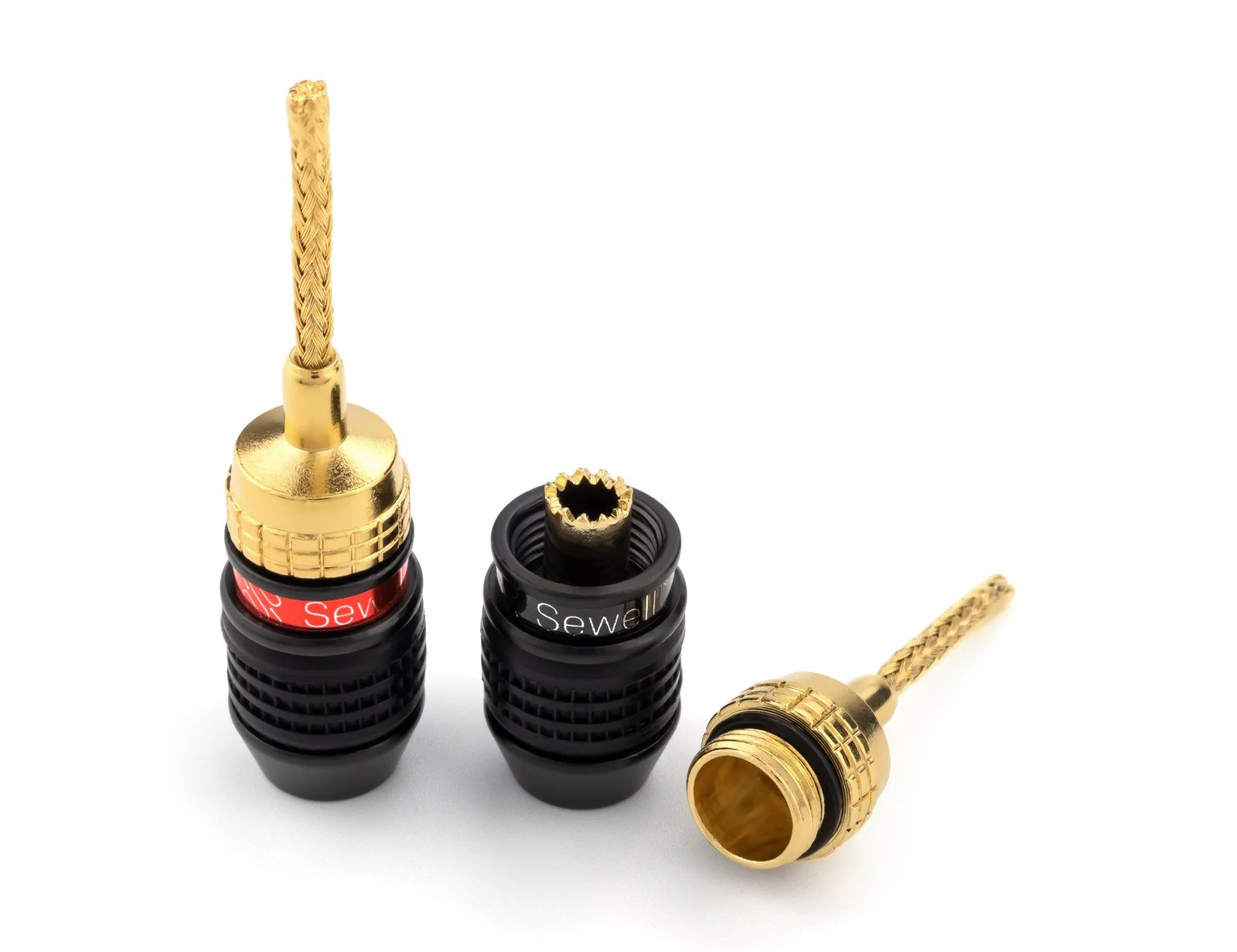

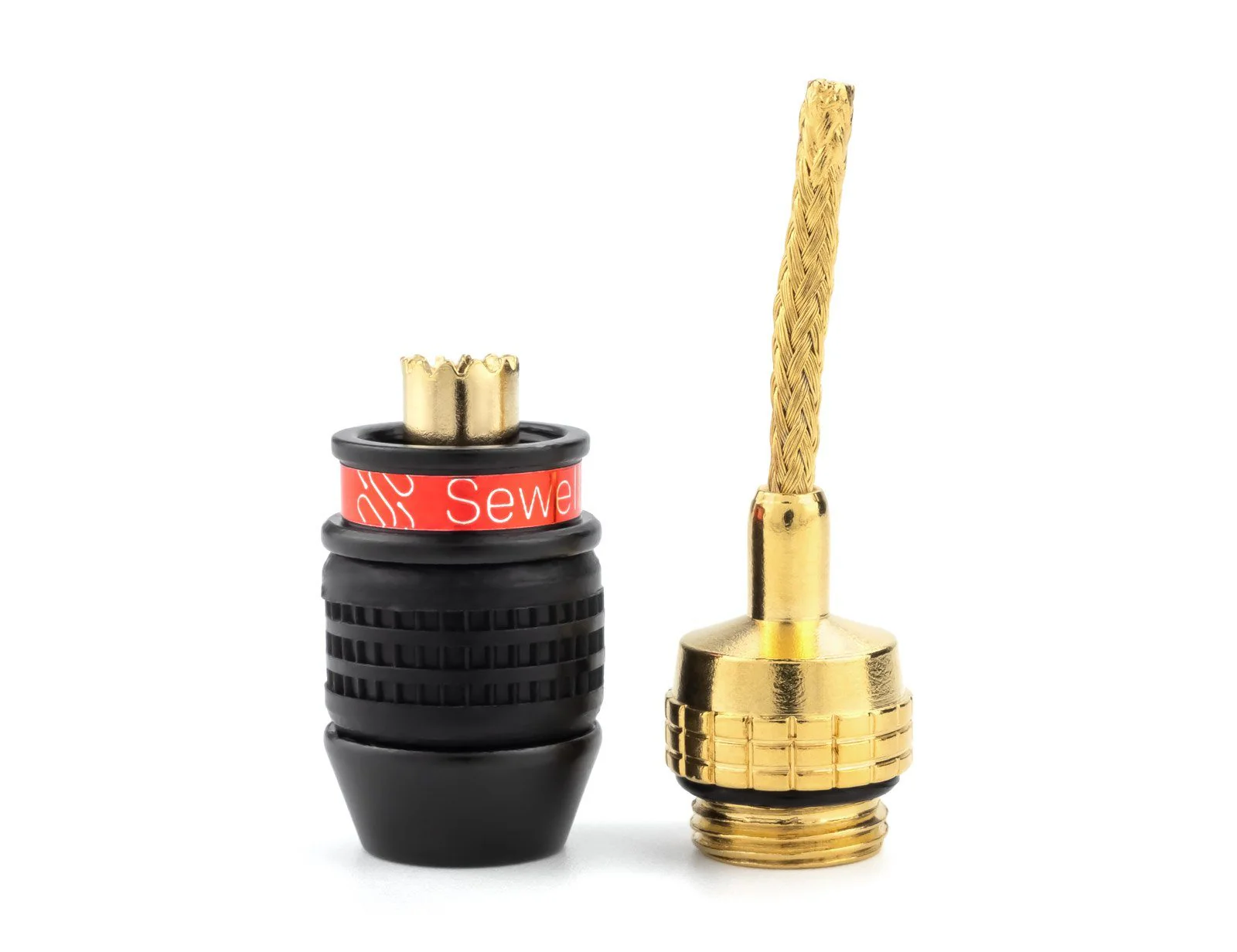

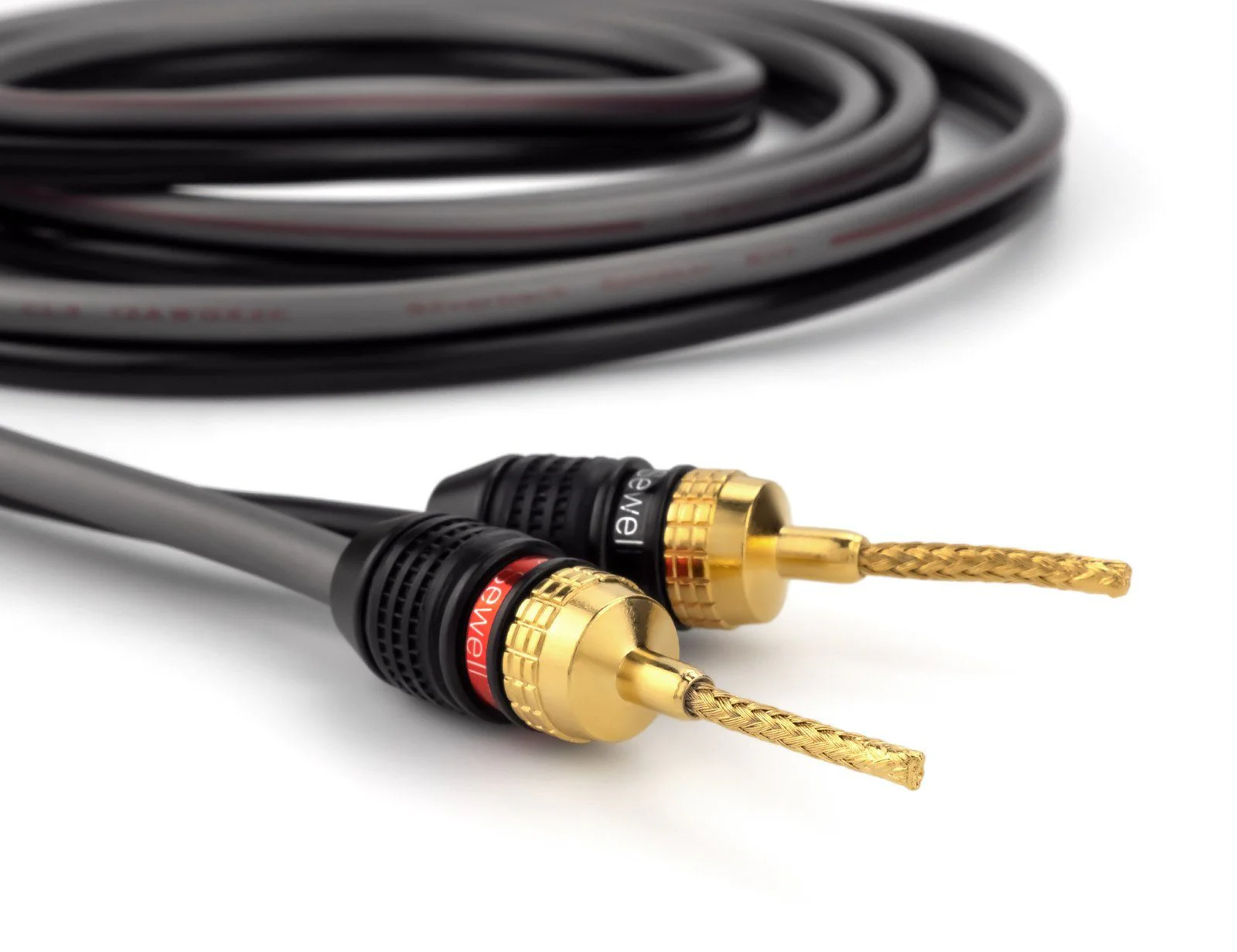

Deadbolt Flex Pin Banana Plugs – Spring Terminal Connectors, 24k Gold, Up to 10 AWG Speaker Wire
Deadbolt Flex Pin Banana Plugs – Spring Terminal Connectors, 24k Gold, Up to 10 AWG Speaker Wire
The new Flex Pin Deadbolt Banana Connectors give you all of the benefits of Banana Plugs for your legacy style receivers and speakers.

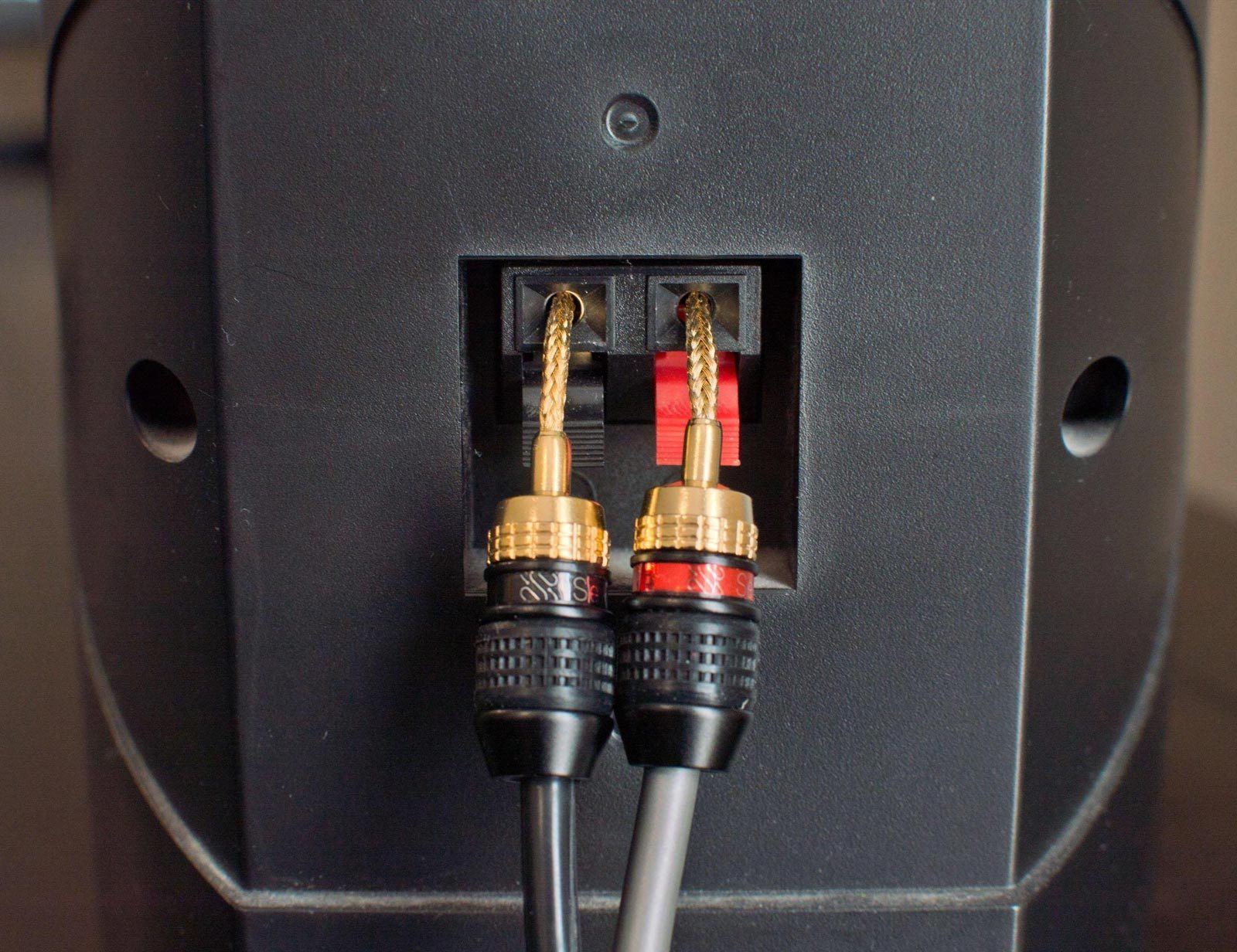

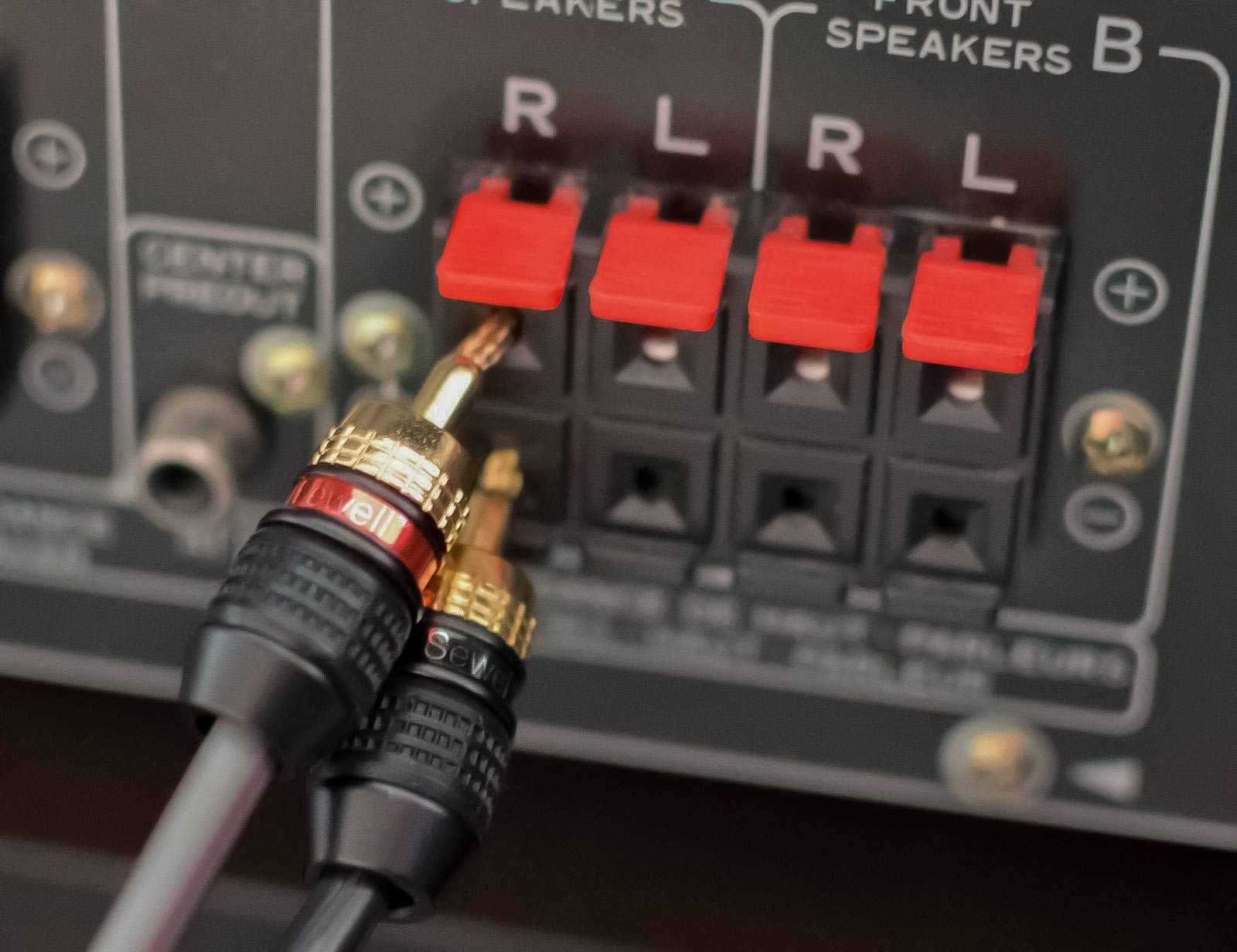

Standard Banana Plugs won’t work with Spring Clip Terminals. Many old receivers and speakers and some new speakers and receivers use this type of terminal shown below. Our Flex Pin Deadbolt Banana Connectors are designed to work with these spring clip terminals.
Flex-Pin Deadbolt Benefits
- Protects your Speaker Wire: The Flex Pin Deadbolts protect the ends of your speaker wire from being destroyed by strong spring clip terminals
- Provides a strong reliable connection: The Gold plated weave gives you the highest possible sound quality
- Allows you to connect higher gauge wire to skinnier terminals. Many high quality speaker wires are too thick to fit into Spring Clip terminals. The Deadbolt Flex Pins let you use speaker wire up to 10 AWG in thickness with these smaller terminals.
Installation
- Strip the cable at least 1/2"
- Unscrew the Dealbolt flex pin's head
- Insert cable through
- Fold Down wires
- Re-screw the Deadbolt Flex Pin's Head
Specifications
Mfg. Part Number

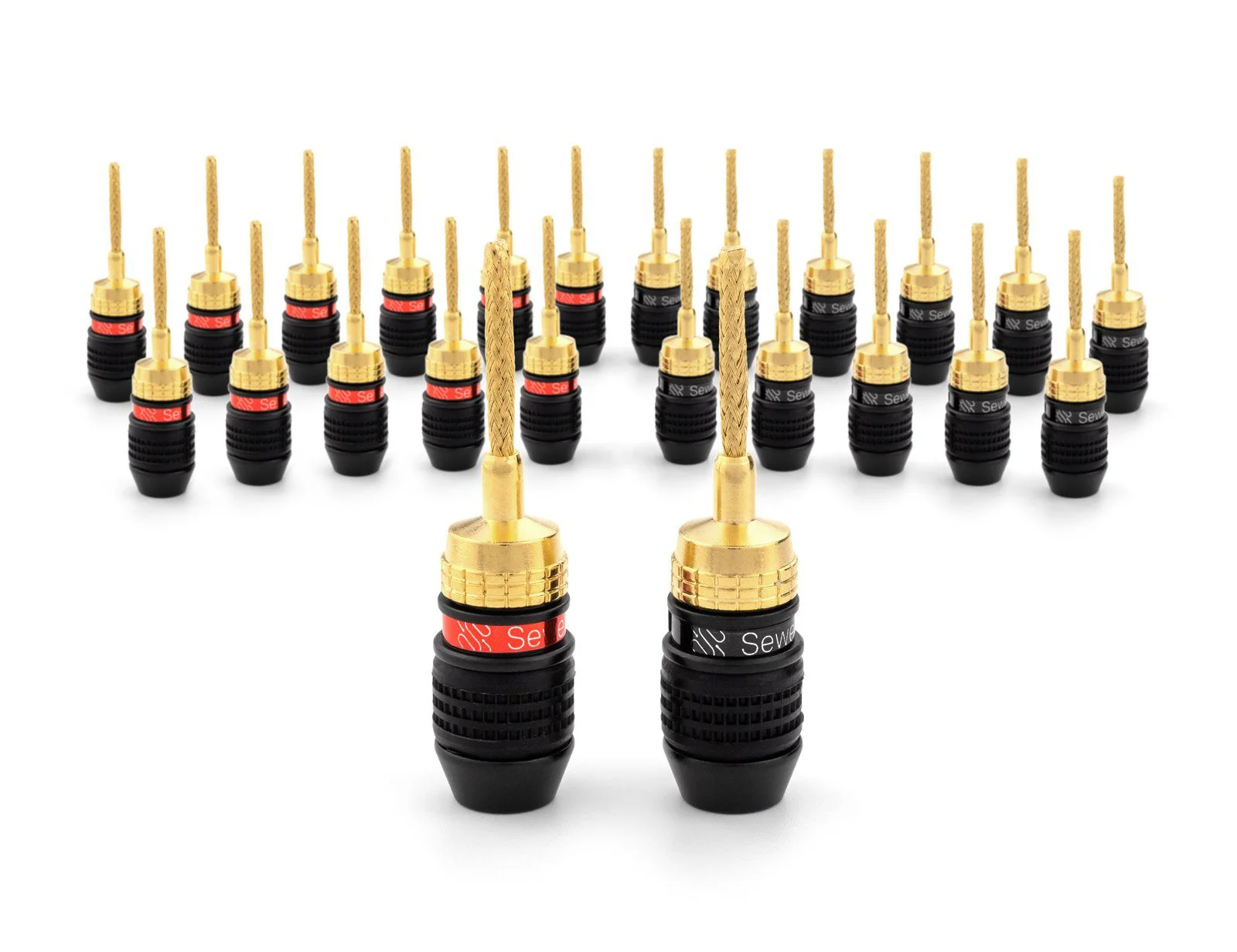

- SW-33116-12 - 12 pack (24 connectors)
- SW-33116-6 - 6 pack (12 connectors)
Brand
- Deadbolt™ by Sewell
Specifications
- Flex pin style connector
- 14AWG gold plated copper braiding
- 24K gold plating for durability and maximum signal transfer
- Accepts wire size up to 10 AWG (12AWG recommended)
- For use in any system with wire-only input
