Kvaser Leaf Light HS v2 CB
*** End of Life Announcement: availability expected until December 31, 2025 - while supplies last. Recommended V3 replacement is Kvaser Leaf V3 CB (01532-6) [SW-33203].

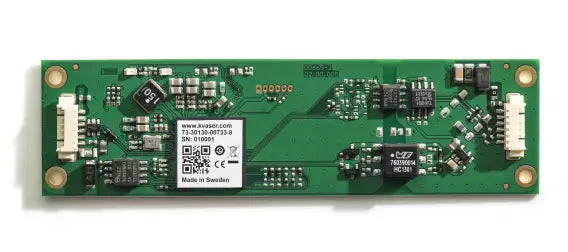

The Leaf Light v2 CB is the bare circuit board version of Kvaser's popular Leaf Light v2 interface - a single-channel, high speed, USB-to-CANbus interface. Having made its name as the work-horse of USB to CAN interfaces, Kvaser's Leaf Light product series provides reliable, low cost connection to the PC.
Major Features
- The Kvaser Leaf Light HS V2 CB is a high speed USB interface for CAN that offers loss free transmission and reception of standard and extended CAN messages on the CAN bus.

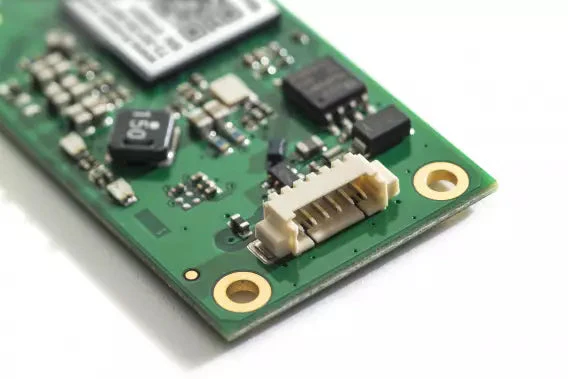

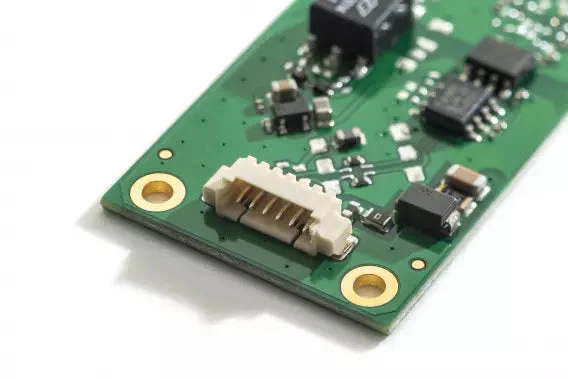

- Both USB and CAN are connected using 6-way connectors and mate with Molex 51021 PicoBladeTM (e.g. housing 51021-0600 and terminal 50079-8000).
- 8000 messages per second, each time-stamped with 100 microsecond accuracy.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Galvanic isolation, enhancing protection from power surges or electrical shocks.
- Local buffering and preprocessing results in high performance and a reduction of time critical tasks for the PC.
Specifications
Warranty
- 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
- Free Technical Support on all products available by contacting [email protected].
Software
- Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
40-1000 kbps
Interfaces, Hardware
CE, RoHS
1
MOLEX 6-PIN
90mA
No
No
Yes
5 mm
USB
100 mm
PA66
8000 mps
8000 mps
Linux, Win 7, Win 10, Win 8
No
No
-20 °C to +70 °C
100 µs
100 g
