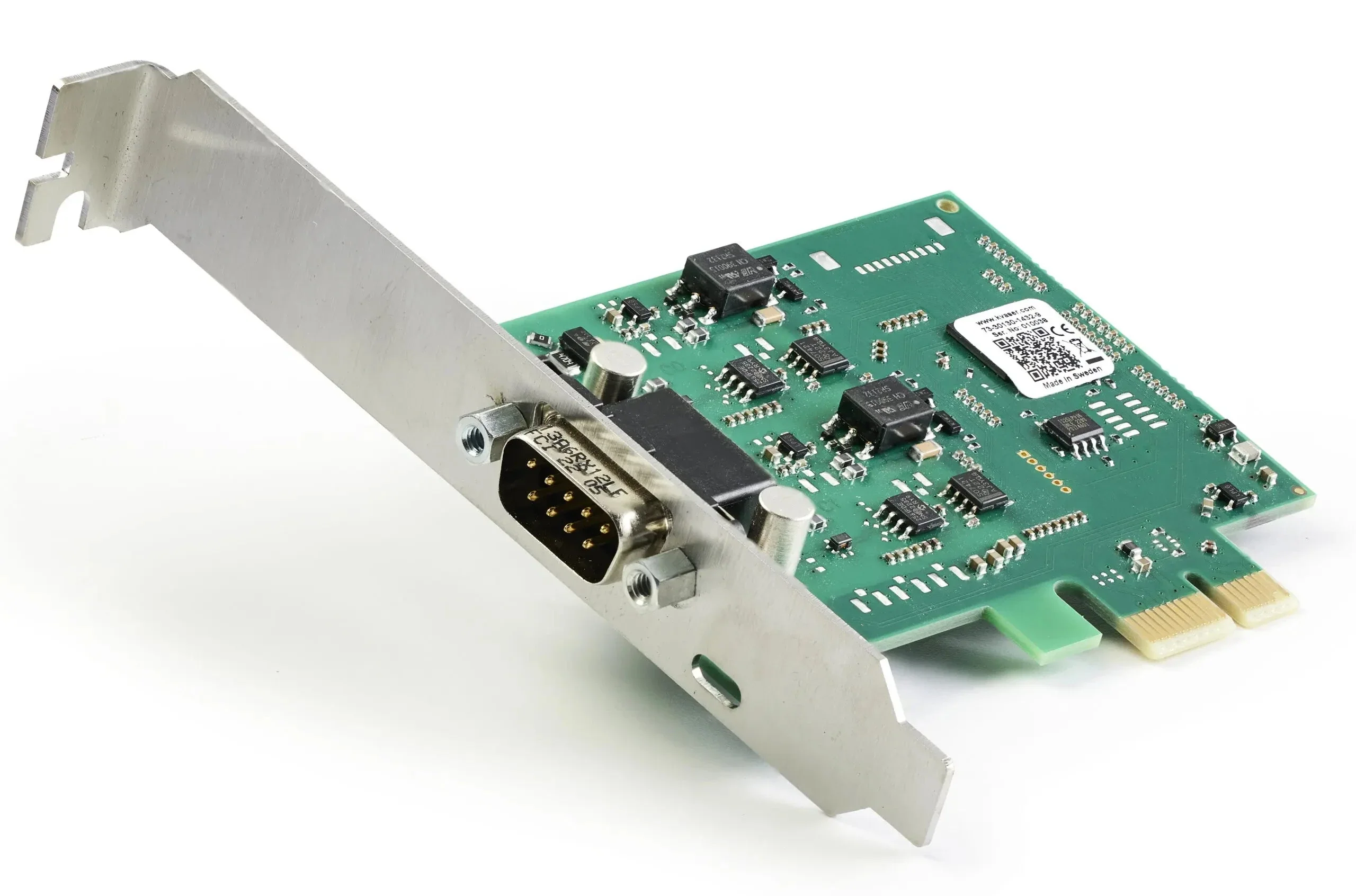

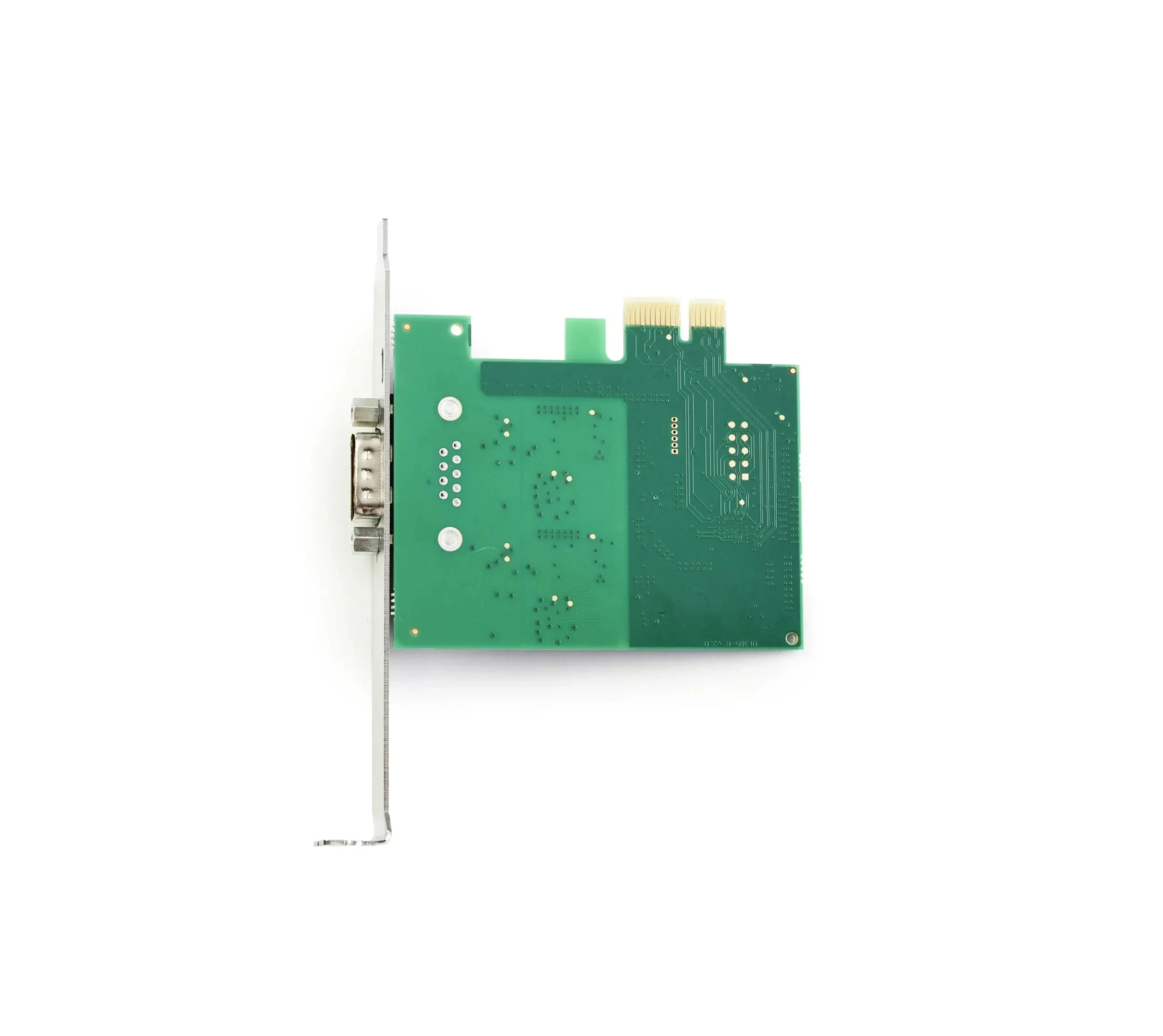

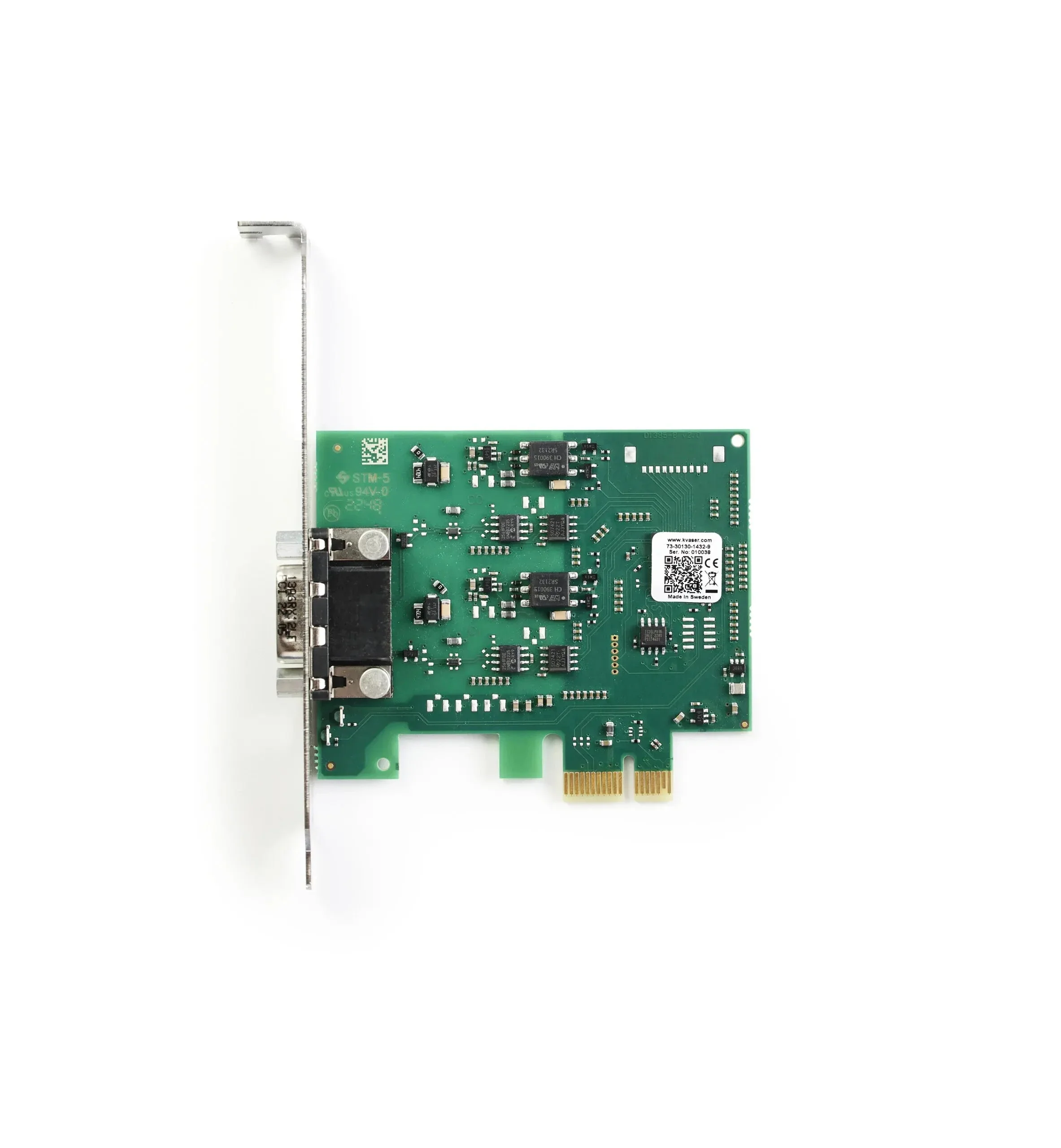

Kvaser PCIEcan 2xCAN v3
Kvaser PCIEcan 2xCAN v3 is a small, yet advanced, CAN multi-channel real time CAN interface that handles transmission and reception of standard and extended CAN messages on the bus with a high time stamp precision. The Kvaser PCIEcan 2xCAN v3 is compatible with applications that use Kvaser‘s CANlib.

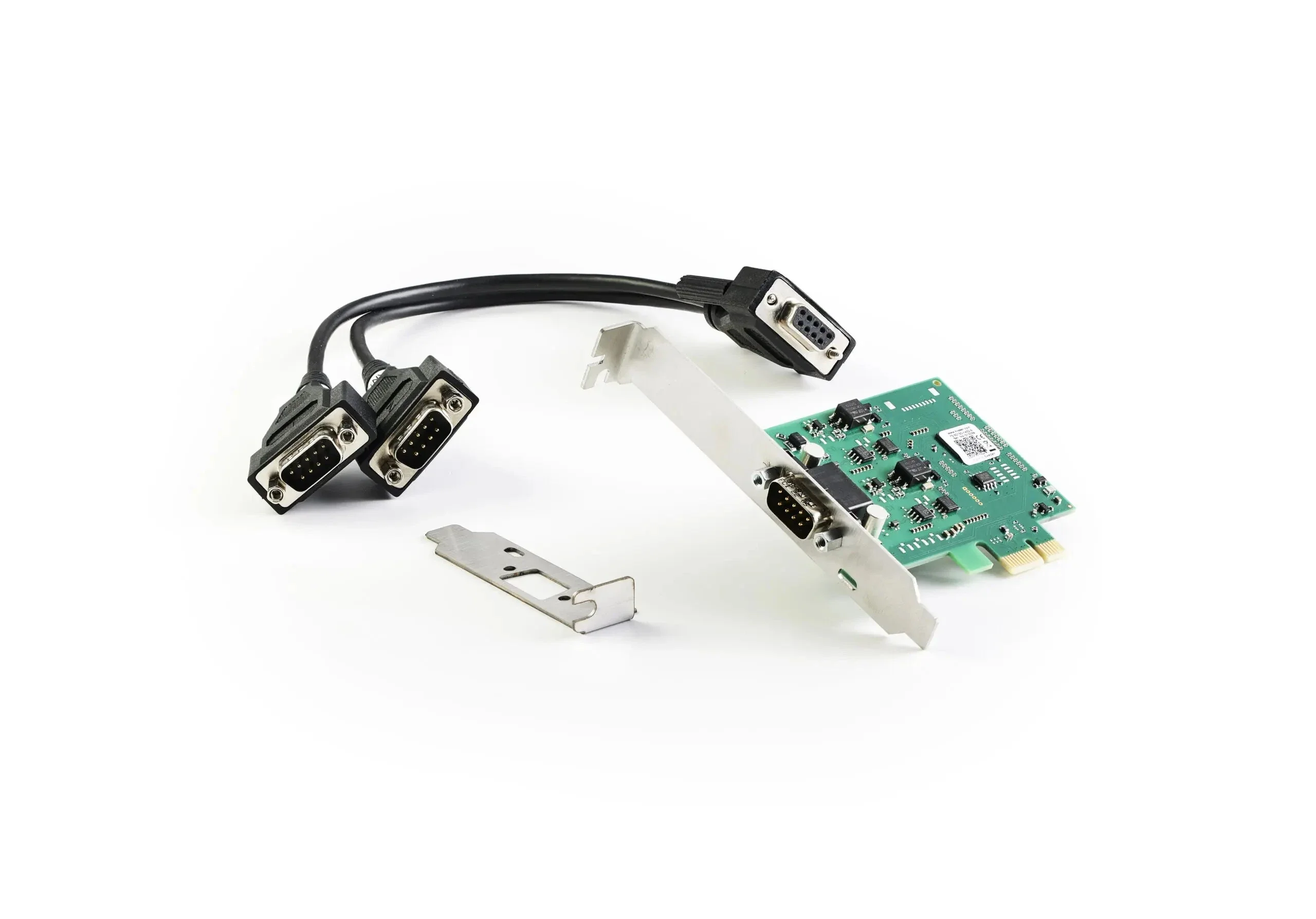

A low-profile and a high-profile bracket are included, together with a 2-channel breakout cable.
Major features
- PCI Express CAN interface.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- 100 % compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit /s.
- Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- Support for SocketCAN.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Supports simultaneous usage of multiple Kvaser interfaces.

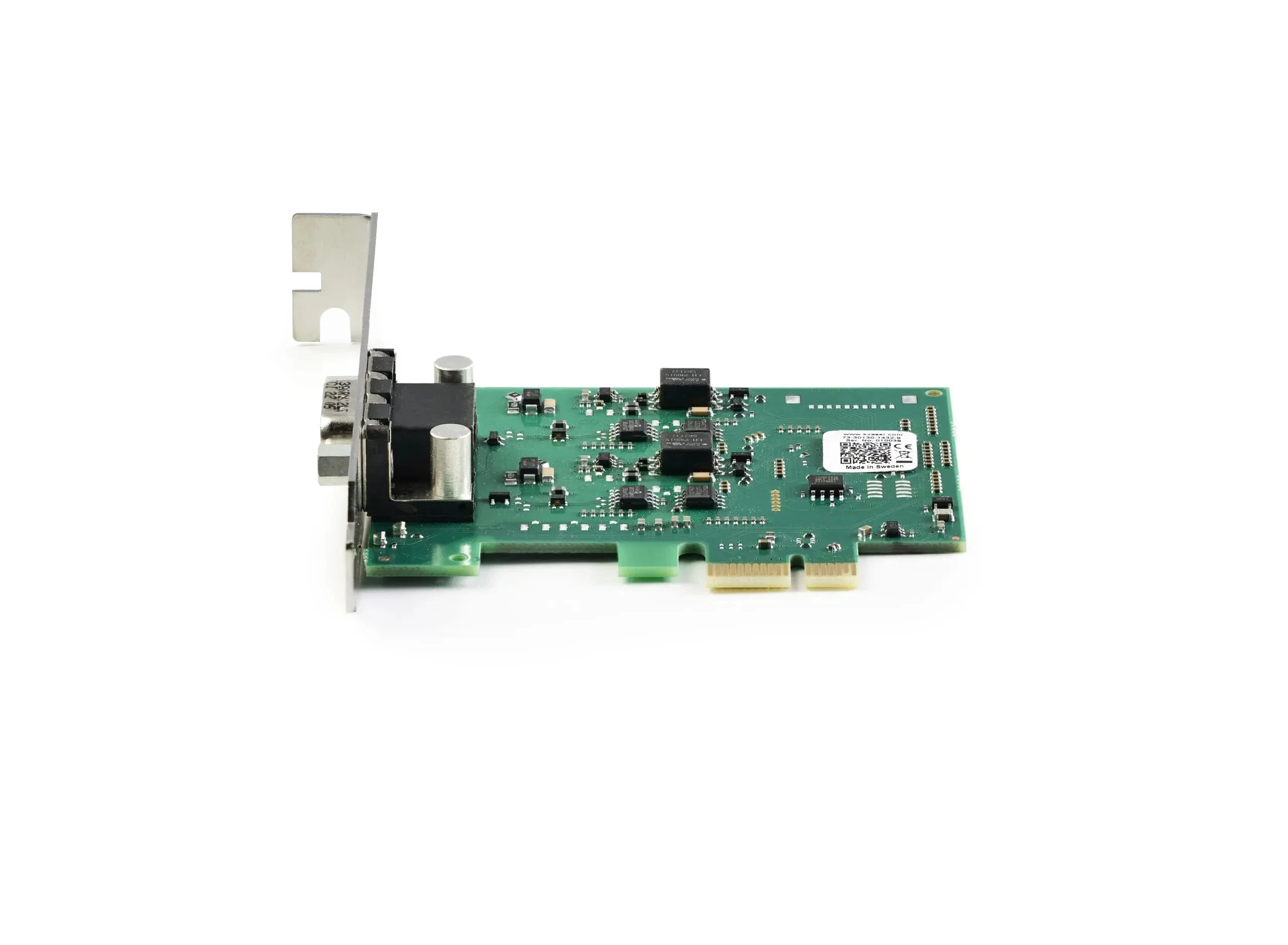

- Low profile board, includes low and high profile brackets.
Specifications
20 - 1000 kbps
86 mm
49 g
20000 mps
20000 mps
DSUB 9
PCI Express
Up to 8 Mbit/s
1 µs
Yes
Yes
Yes
Yes
CE, FCC
Windows 7 (IA-32 and x86-64), Windows 8 (IA-32 and x86-64), Windows 10 (IA-32 and x86-64), Windows 11 (x86-64), Linux
-40 °C to 85 °C
No
Interfaces, Hardware, CAN
2
Original: $602.98
-65%$602.98
$211.04
Description
Kvaser PCIEcan 2xCAN v3 is a small, yet advanced, CAN multi-channel real time CAN interface that handles transmission and reception of standard and extended CAN messages on the bus with a high time stamp precision. The Kvaser PCIEcan 2xCAN v3 is compatible with applications that use Kvaser‘s CANlib.
A low-profile and a high-profile bracket are included, together with a 2-channel breakout cable.
Major features
- PCI Express CAN interface.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- 100 % compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit /s.
- Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- Support for SocketCAN.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Supports simultaneous usage of multiple Kvaser interfaces.
- Low profile board, includes low and high profile brackets.
Specifications
20 - 1000 kbps
86 mm
49 g
20000 mps
20000 mps
DSUB 9
PCI Express
Up to 8 Mbit/s
1 µs
Yes
Yes
Yes
Yes
CE, FCC
Windows 7 (IA-32 and x86-64), Windows 8 (IA-32 and x86-64), Windows 10 (IA-32 and x86-64), Windows 11 (x86-64), Linux
-40 °C to 85 °C
No
Interfaces, Hardware, CAN
2
