Kvaser USBcan Pro 4xHS
The Kvaser USBcan Pro 4xHS is an advanced, portable multi-channel CAN/CAN FD to USB real time interface that handles transmission and reception of standard and extended CAN messages on the CAN bus with a high time stamp precision. Features include t programming and MagiSync™, which makes it possible to synchronise time stamps across multiple Kvaser MagiSync™-enabled devices without requiring extra wires.

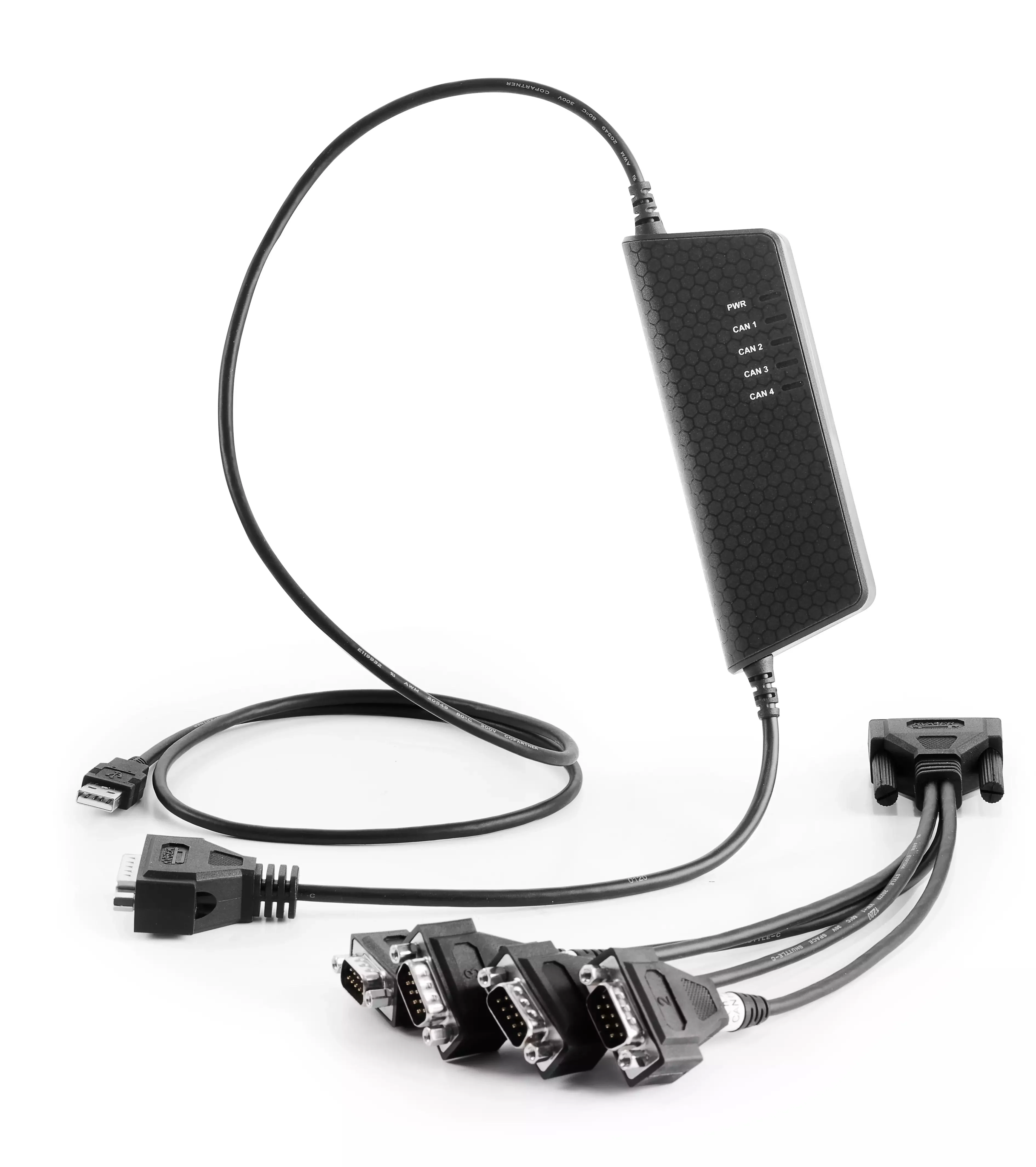

The Kvaser USBcan Pro 4xHS USB to quad channel CAN interface is the Pro version of the Kvaser USBcan Light 4xHS (00831-1), a compact, reliable and cost-effective means of connecting four high speed CAN buses to a PC or mobile computer.
Major Features
- Multi-channel USB CAN interface with Kvaser t programmability.
- 20 000 msg/s per channel, each timestamped with a resolution of 1 μs.
- Kvaser MagiSync™ – automatic time synchronization.
- Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Industrial grade temperature range, −40 oC to +85 oC.
- Galvanic isolation.
- Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- Simultaneous operation of multiple devices.
- Power is taken from the USB bus.
- Includes a 4-channel breakout cable.
Specifications
Warranty
- 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
- Free Technical Support on all products available by contacting [email protected].
Software
- Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
40-1000 kbps
Interfaces, Hardware, CAN
CE, RoHS
4
26-pin HD D-SUB
max 500 mA
Yes
Yes
Yes
20 mm
USB
170 mm
PA66
20000 mps
20000 mps
Linux, Win 7, Win 10, Win 8
Yes
No
-40 °C to +85 °C
1 µs
