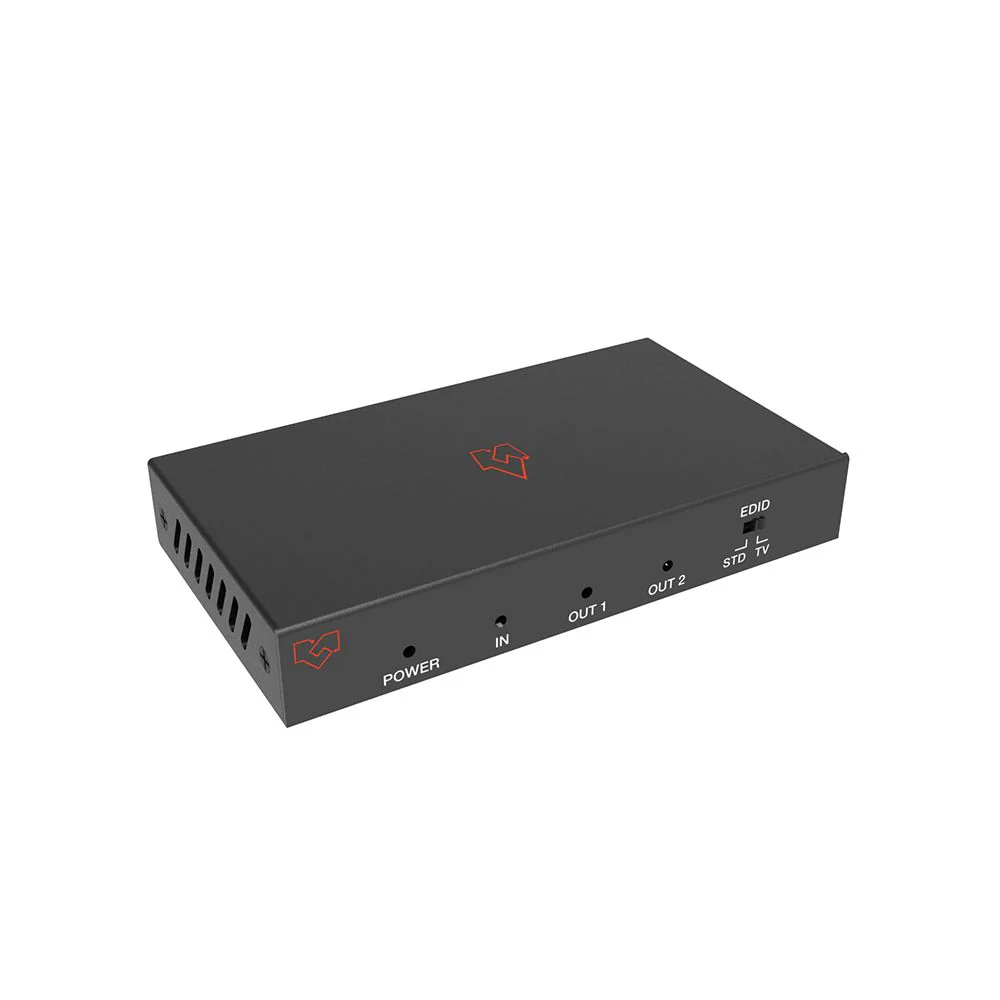

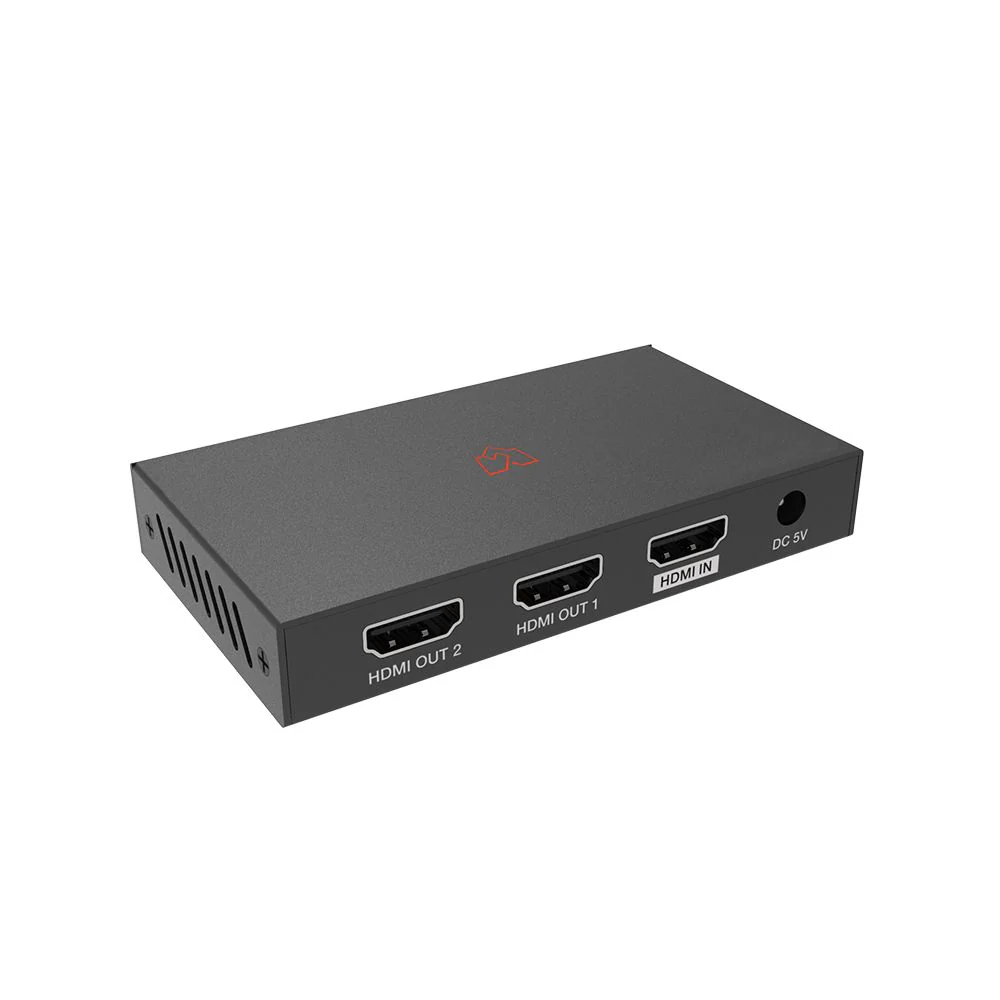

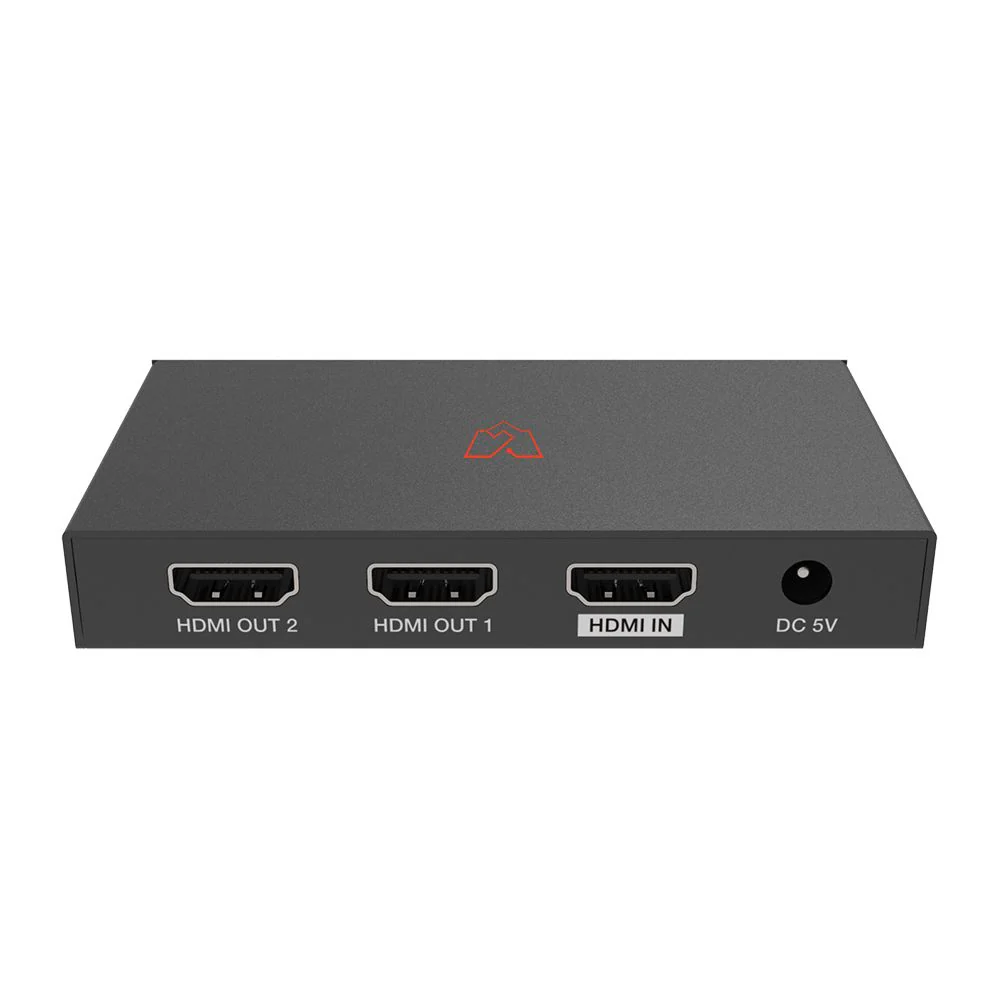

VigilLink 1x2 HDMI 2.0 Splitter Distribution Amplifier 18 G / VLSP-12H20

VigilLink 1x2 HDMI 18Gbps Splitter is an advanced solution for splitting HDMI content to 2 HDMI outputs synchronously. It provides high-performance audio and video up to 4K2K@60Hz (4:4:4) and can receive, retiming, and transmit up to 18Gbps of bandwidth with no data loss.

Featured Highlights

• HDMI 2.0b, HDCP 2.2 compliant

• Up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4

• VESA format up to QSXGA@60Hz

• Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

• Built-in equalizer, retiming, and driver

• Smart EDID, STD (1080p) mode, and TV (copy OUT1) mode

• Compact design for an easy and flexible installation

Specifications

Technical
Video Bandwidth	600MHz/18Gbps
Input Port	1×HDMI Type A (19-pin female)
Output Ports	2×HDMI Type A (19-pin female）
Video Resolution	4K2K@24/25/30/60Hz
ESD Protection	Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Mechanical
Chassis Material	Metal
Silkscreen Color	Black
Power Consumption	2W
Weight	165g
Power Supply	Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standard, CE/FCC/UL certified)
Dimensions	56 mm(W)×100 mm(D)×16mm(H)
Operating Temperature	0°C ~ 45°C / 32°F ~ 113°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20 - 90% RH (No condensation)
